Sittler Quality Windrow Turners Model #512
updated
Jan 25/2016

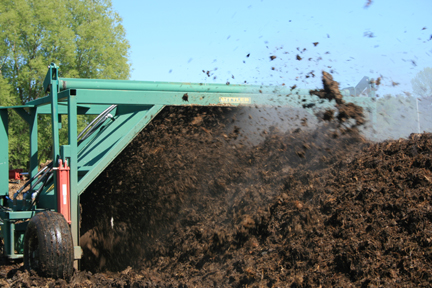

Sittler Windrow Turner Model #512, shown above, is ideal for medium to large farm, municipal and industrial composting.

Sittler Windrow Turner 512 * Retourneur d'andain du compost Sittler 512 from Global Repair on Vimeo.

Sittler Introduces New 512 Drum Design

The new Sittler 512 windrow turner has an enhanced drum design improving performance. The new larger drum, with shorter, wider, reversible blades, provides even more efficient clean up to the bottom of the windrow, further preventing anaerobic layers from accumulating.

Improved turning enhances the movement of organic matter and increases aeration. With greater turning capacity, the unit is able to tackle more densely packed areas in the windrow. The enhanced turning motion creates a sharper peak with improved CO2/Oxygen flow.

The drum change was a result of positive client feedback from the new efficient 1014 performance. The change allows operators the opportunity to have similar performance to the larger 1014 model with a unit suited to a lesser volume.

The new 512 model has proven performance and client satisfaction. Operators have described the new 512 turner as having an easier turn, with less tractor resistance and engine stress, moving compost more thoroughly, forming a sharper peaked windrow that breaks down more efficiently, making a better quality compost. All Sittler turners are now enamelled with a more abrasion resistant finish and come with a 1 year warranty.



Reliable, efficient, economical, low-maintenance, and long-lasting. Extra-hardened, replaceable steel blades are uniquely positioned on the drum to allow for complete blending right to the base of the windrow. Material from the outside is brought inward and from the bottom to the top forming a peak position, allowing the windrow to have a chimney effect for ideal CO2/oxygen flow.

Turner folds conveniently for shipping.

Rectangular box for connector-3/8x6 in front, 1/4x12 on side enclosed for protection gives more strength and stability. Low swing cylinder. The 2 rubber flap, one on each side contain compost is now divided for faster feed in of the compost. 2 front scrapers keep the windrow uniform.

Hydraulics allow the tractor to fit snug against the windrow.


Water
injection spray system with galvanized elbows. 3 water spray nozzles inside the compost processing area, known as the tunnel, allow for appropriate adjustable moisture to be applied to the compost. For more information on our watering system please go to Sittler water wagon.

Special housing encloses the bearings and shaft to protect the mechanisms from dust and debris.

Right hand shield is removable. PTO – right hand end is a shear bolt arrangement with shear bolt protection.

Threading frame with roller allows the fleece cover to be raised and lowered while the compost is turned.  Covers help retain and repel moisture as required, shed UV light and protect microbes.


The windrows have a sharpened peak for improved oxygen flow and shedding of excess water.



The front middle flap is divided into 2 sections for easier flow through.


There is a 5000 LB capacity spindle holding the wheel 3.5 x 18"cylinder for lifting the machine.


Technical support, including database calculations and consultations for making quality compost available. All machines come with one year warranty.
